BI,
Help please!!
I'm trying to load the owfs-feed.conf into the /etc/ipkg directory but I can't access the admin section off the drive through network neighbourhood.
Any ideas?
I need this to use ipkg install owfs
Printable View
BI,
Help please!!
I'm trying to load the owfs-feed.conf into the /etc/ipkg directory but I can't access the admin section off the drive through network neighbourhood.
Any ideas?
I need this to use ipkg install owfs
Hmm, TUX as an avatar but 'never' really seen Linux huh, :wink:
Don't know too much about the slug but I use WinSCP for copying files to my OpenWRT box. WinSCP is free to use and downloadable at http://winscp.net/. Much faster and easier to use than the MS-way. It looks like WinCommander from the past and has two panes which makes is easy to drag files from your pc to the slug. For a console I use PuTTY, also free. Isn't Linux great :lol:
That sums it up!Quote:
Originally Posted by C4Vette
I have used linux before but very limited CLI usage and more the GUI packages such as Ubuntu and Debian. As you would know, these packages set everything up for you. There is no requirement to use the CLI to set the ethernet up and to get other devices going by installing the packages.
What was casuing my problem was the fact I could see the directories through my network neighbourhood, but I did't have the permissions to write the files to the /etc/ipkg directory.
After a little headbanging, I remembered that you have to be logged in as ROOT to have the permissions to write there.
I also have PuTTY installed and it was through this that I managed to sort things out. Once I remembered the ls, cp and cd commands every thing worked. It's all sweet now.......for the time being at least. :lol:
I do hope you understand I was just kidding around :oops: and wish things work out for you. I'm no guru myself and learning by doing and reading great topics like this one. Hopefully we hear more from your project and we can help each other.
greetz, Ed
No harm done C4Vette :D
I pretty much well learn the same way. I've been pulling things apart since I was about 5 years old to also learn how things work!!
I have downloaded WinSCP and yes, it is a lot easier than the MS and CLI way. I will, without doubt, be using it if I get stuck again trying to use the CLI to move/copy files. Thanks for the tip!
Cheers,
Col.
BN...How are you going ? Do you have OWFS installed yet. ? there was an update to the script I had put forward that had a couple of typo's.
Well, my system is up and running (as far as lights are concerned).

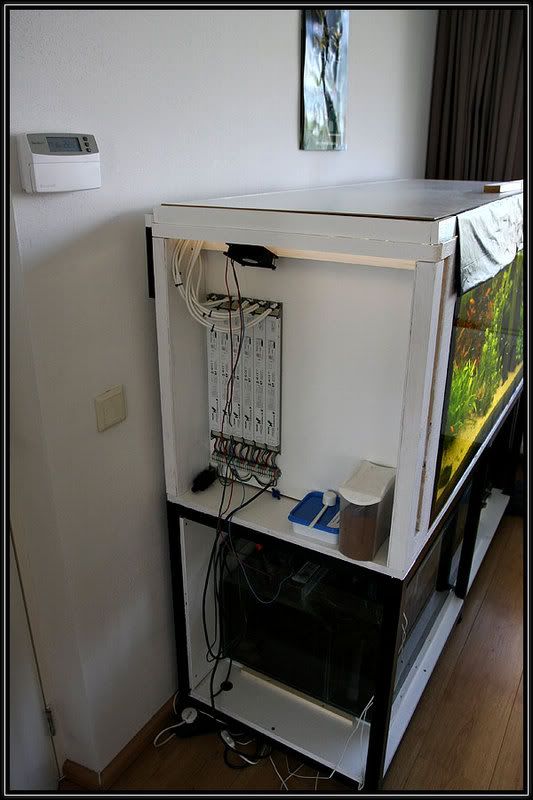

Preparation for light panel (before)
http://i168.photobucket.com/albums/u...2/IMG_2724.jpg

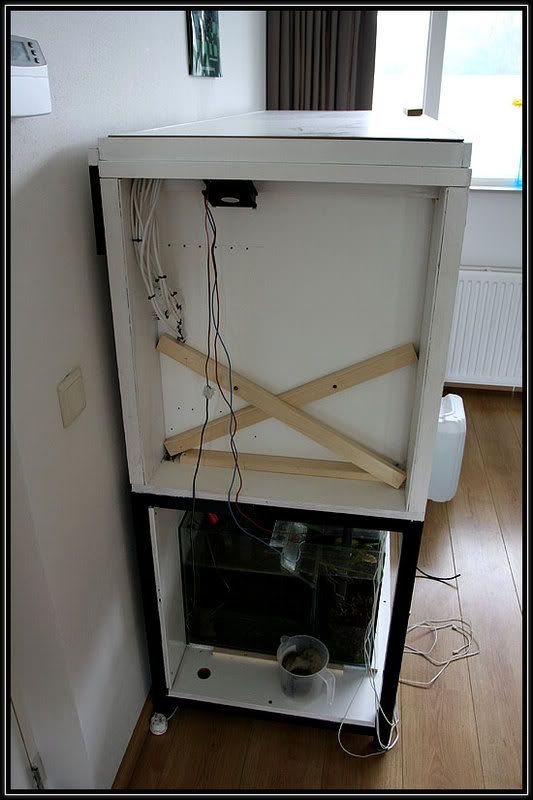

Electronic Ballasts removed
http://i168.photobucket.com/albums/u...2/IMG_2745.jpg
Preparing tools:
http://i168.photobucket.com/albums/u...2/IMG_2747.jpg
http://i168.photobucket.com/albums/u...2/IMG_2723.jpg

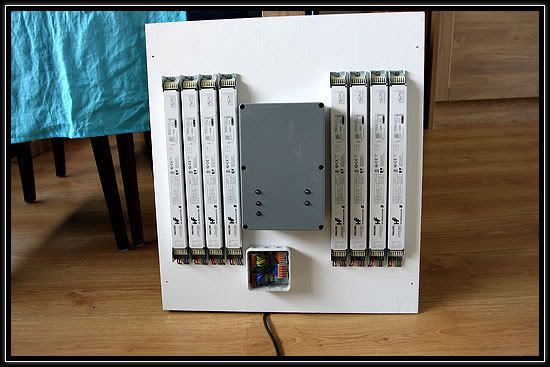

New light panel with my own "light control unit"
http://i168.photobucket.com/albums/u...2/IMG_2748.jpg

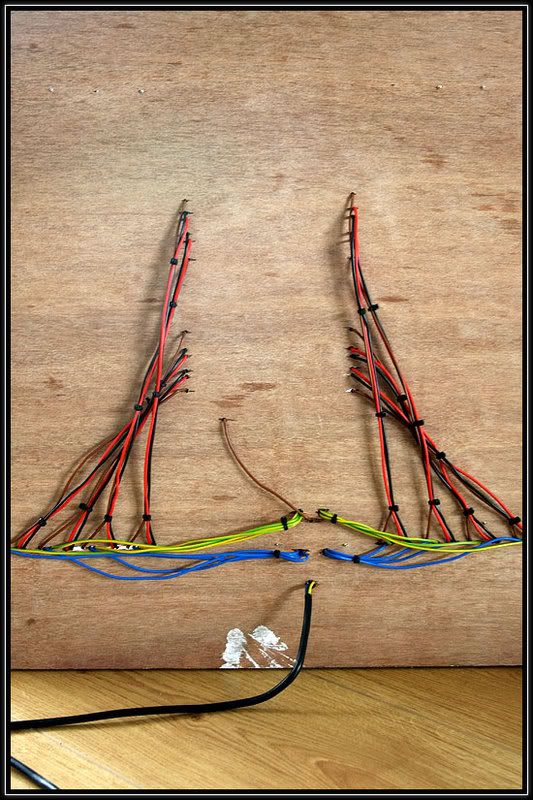

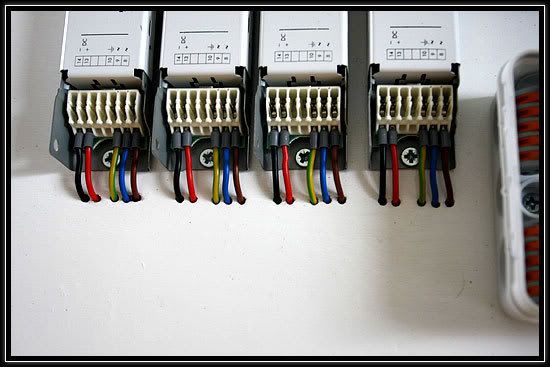

All wires are nicely placed in a hidden compartment.
http://i168.photobucket.com/albums/u...2/IMG_2750.jpg
http://i168.photobucket.com/albums/u...2/IMG_2751.jpg

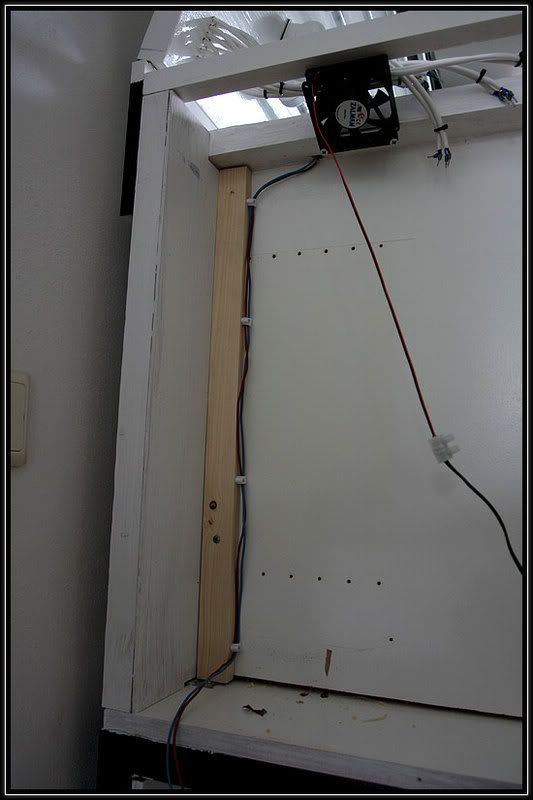

Wich looks like this (you see the bottom heater cable running here)
http://i168.photobucket.com/albums/u...2/IMG_2753.jpg

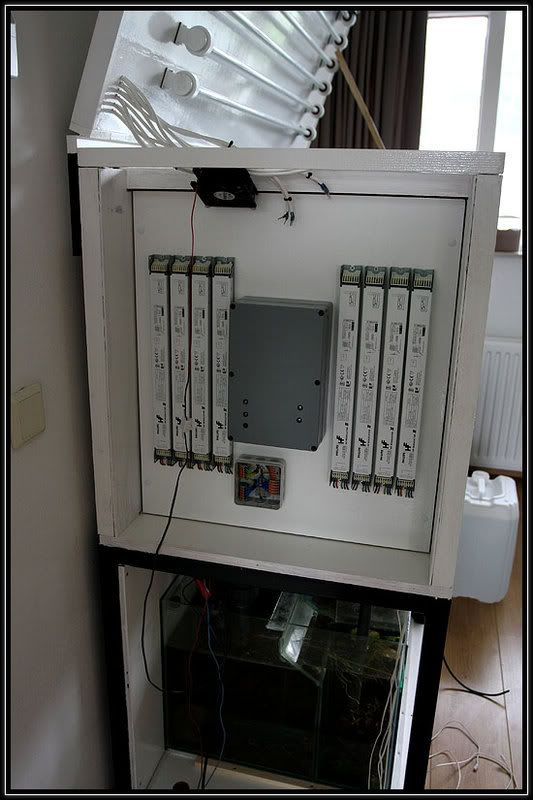

And this is how it looks when it is all closed.
http://i168.photobucket.com/albums/u...2/IMG_2754.jpg

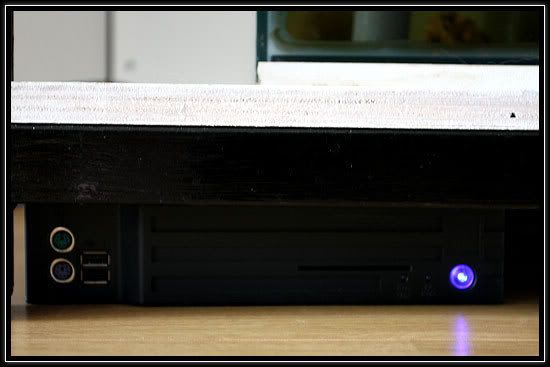

The computer which only used 15 watts of power
http://i168.photobucket.com/albums/u...2/IMG_2756.jpg

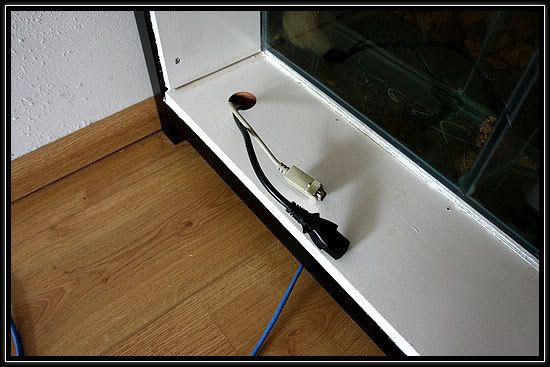

Preparation for connecting the computer to the HUB which in its turn controls the 1-wire network:
http://i168.photobucket.com/albums/u...2/IMG_2757.jpg

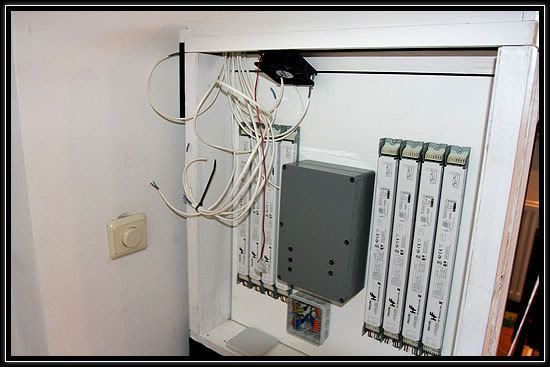

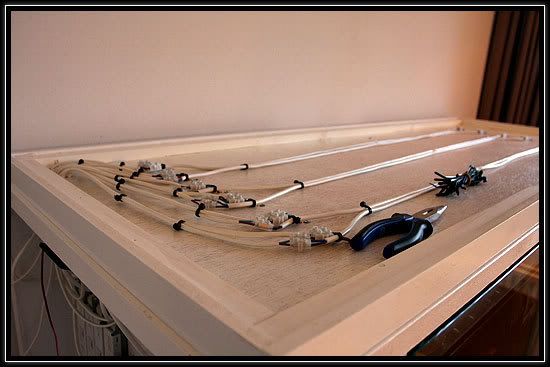

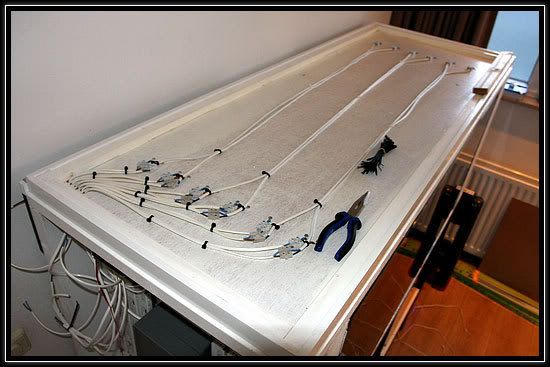

Re-attaching wires:
http://i168.photobucket.com/albums/u...2/IMG_2760.jpg
http://i168.photobucket.com/albums/u...2/IMG_2761.jpg
http://i168.photobucket.com/albums/u...2/IMG_2762.jpg

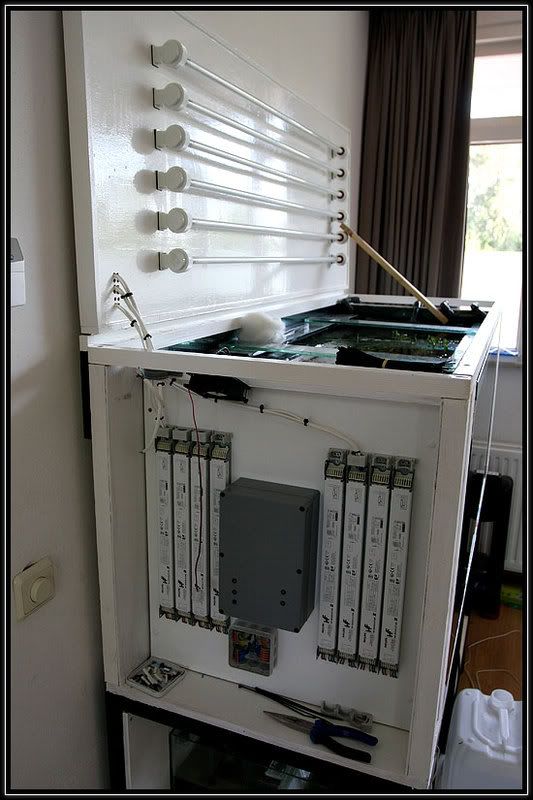

****, wires to short....
http://i168.photobucket.com/albums/u...2/IMG_2763.jpg

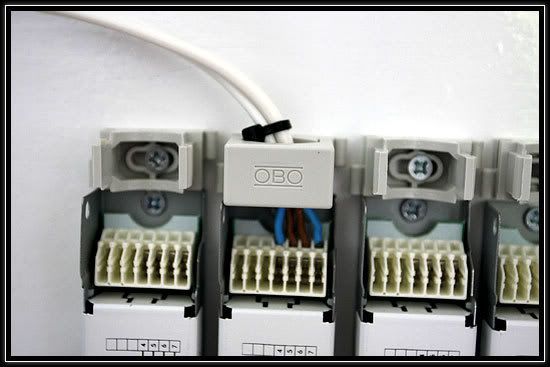

Prevent wires from pulling to much on the ballast:
http://i168.photobucket.com/albums/u...2/IMG_2764.jpg

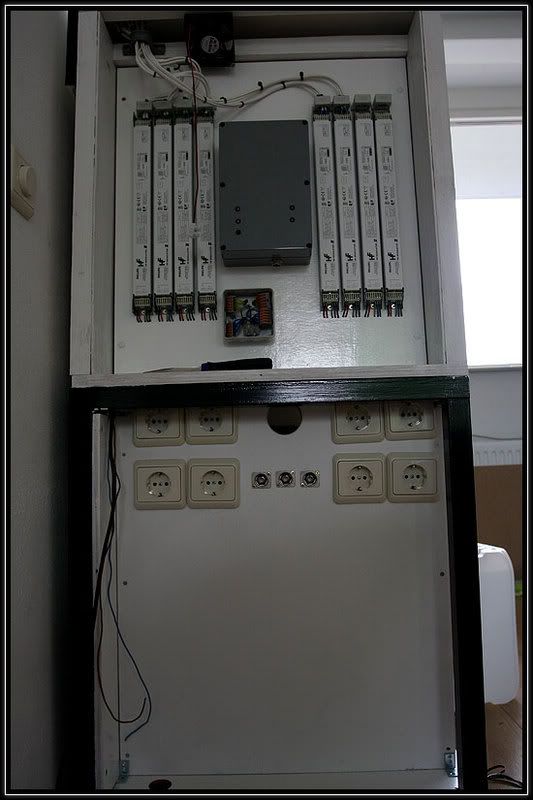

The bottom part of my electronics is (visually) finished:
http://i168.photobucket.com/albums/u...2/IMG_2765.jpg

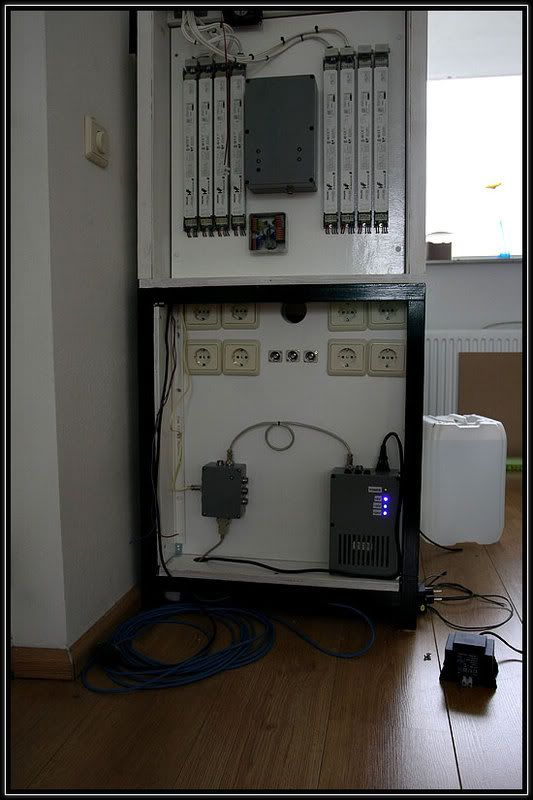

Adding some juice to the network:
http://i168.photobucket.com/albums/u...2/IMG_2766.jpg

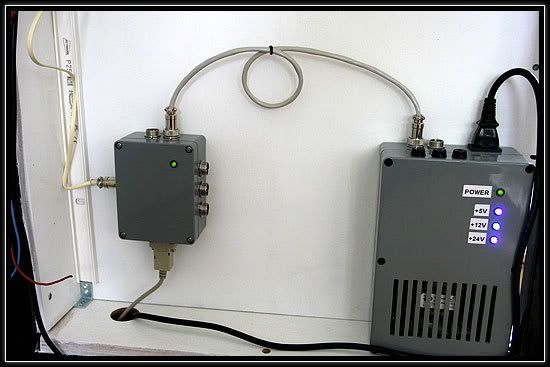

HUB:
http://i168.photobucket.com/albums/u...2/IMG_2767.jpg

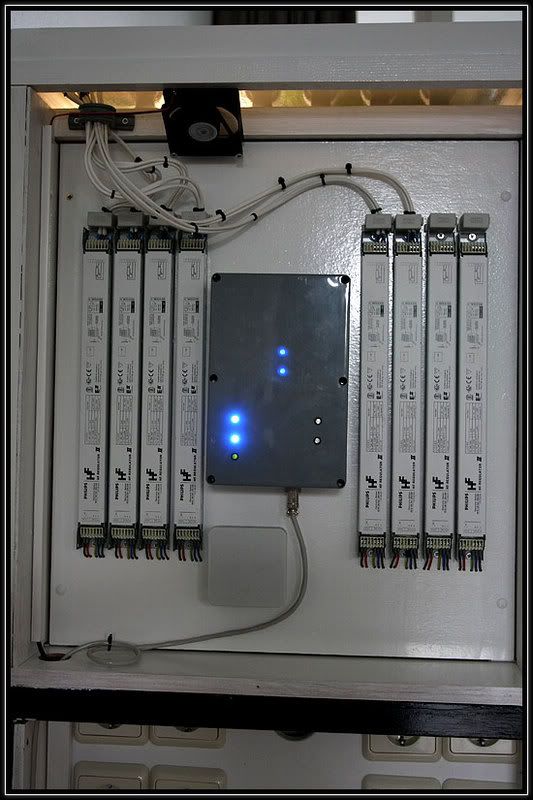

Lights in action:
http://i168.photobucket.com/albums/u...2/IMG_2768.jpg

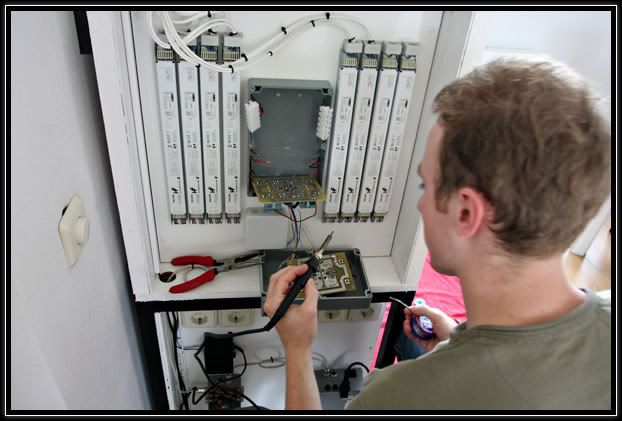

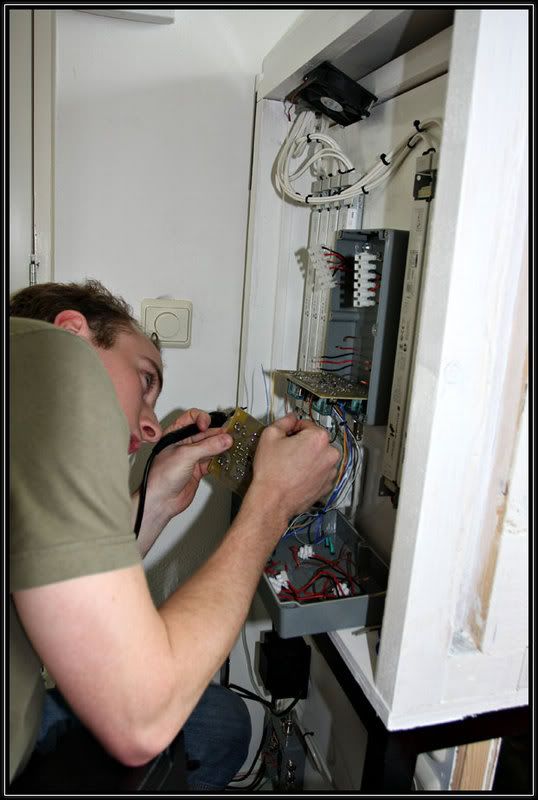

Maintenance by a student which i hired to do all the tiny stuff (like soldering 220 volts ikes!)
http://i168.photobucket.com/albums/u...2/IMG_2797.jpg
http://i168.photobucket.com/albums/u...2/IMG_2799.jpg
So i have been running my 6 lights now for about 1 month without any problems. Next up is construction in my own house (i get the key tomorrow). When the aquarium is moved, i'll start on the PH, temp and dosing pumps.
:D Nice work Gilles! :D
One of the great things about electronics is that you are usually limited only by your imagination.
I take it by looking at the photo's, they are dimming ballasts?
What's the specs on the little computer?
For your dosing pump, have you made something DIY or are you using a commerical product?
Sorry for all the Q's...
Cheers,
Col.
Thanx for your reply; here are the answers:Quote:
Originally Posted by Bald_noggin
Yes, dimming ballasts, 100% - 1%. The 1-wire chip sends 0-255 steps to the network. Then, there is some smart stuff integrated onto the PCB which i did not invent.. hehe It turns off the power to the ballast if the voltage comes below 1v. (e.g. less then the minimum dim power). This way, it does not cost me any relais.
The little computer is this one:
http://www.microclient.nl/images/sto...ientTTZero.jpg
Specs:
CPU: VIA C3 533 MHz
Memory: 512 MB 133 MHz SD-RAM
Slot: 1x PCI with riser
IDE: 1x IDE with convertor for Compact Flash (unfortunately, no DMA)
LAN: 1x 100 Mbit LAN onboard (bootable)
Video: Onboard Trident VGA 8 MB, max 1600x1200
Sound: Onboard sound, speaker/mic
I/O: 2xPS/2 2xUSB1.0 (bootable) 2xCOM 1xLPT
Dimensions: 5x23x21 cm (hxwxd)
Weight: 1,7 kg
Power usage: 15 Watt
For storage i use a 1gig CF card. Which makes it 100% noiseless.
As for dosing; i was going for a DIY, but then i found 1.5l/hour pumps which only cost 40$. Complete with housing etc. This means ~0.5ml/sec.
Well you can compare them with Aquamedic SP3000, they almost look thesame:
http://www.erdingtonaquatics.com/aquamedic/SP3000.jpg
All that is left for me to do is:
- Make the PH and ORP/Conductivity unit.
- Connect the 8-port relais (4x = dosing, 3x heating (2 tubes, 1 bottom heater), 1x CO2 valve)
- Start monitoring temps
There will also be a new kinda "hub" which can connect "floaters" (you know, those things which monitor water level).
http://www.rainforest-frogs.nl/shop/...er-120x120.jpg
Using that, i can detect low water/high water and use the PC speaker to alert me (since the canopy is closed).
Nice work, very impressive... How much are the dimable ballast's ?
When you get to monitor via rrdtools suggest you only update every so often as the CF card has limited writes.
rob
